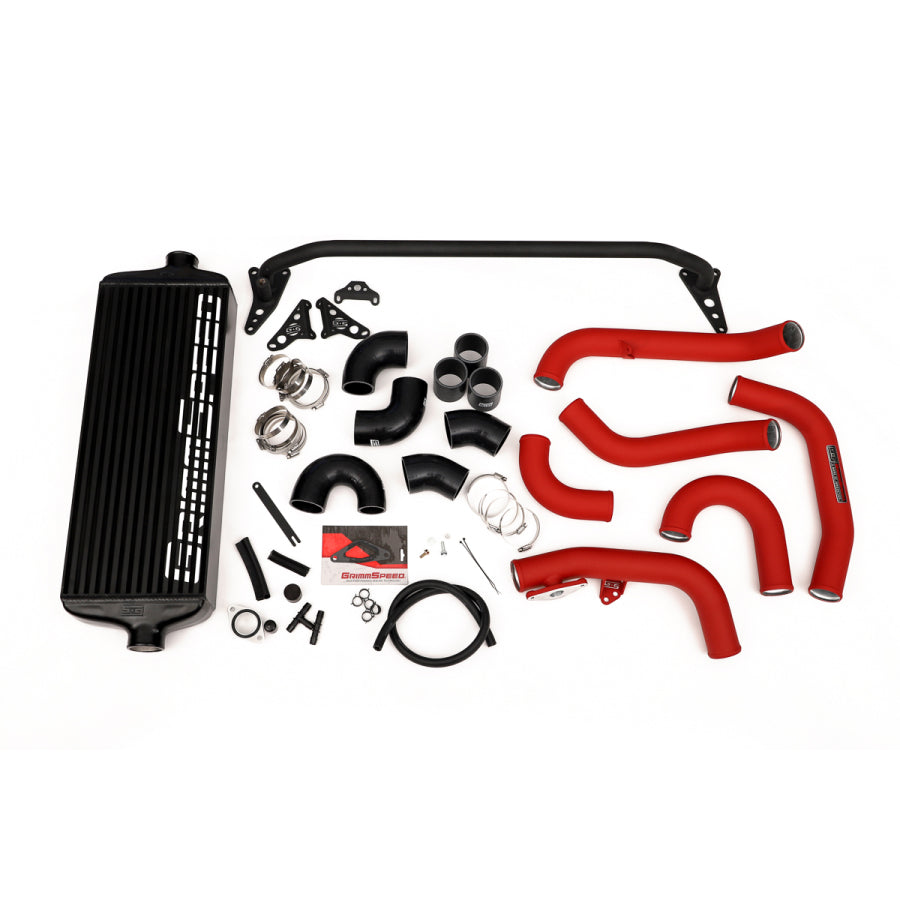

GrimmSpeed Front Mount Intercooler Kit Black Core Red Piping - 2015-2021 WRX

SKU: GRM 090255

$1,679.00

This is the GrimmSpeed Front Mount Intercooler Kit. This is the latest offering from GrimmSpeed and has been designed with a great balance of low-pressure drop and high-temperature rejection to provide optimal performance for a turbocharged engine. This intercooler kit is very beneficial for those of you with minimal to moderate modifications as those modif. . . Show More >

The GrimmSpeed kit includes all of the major components which are detailed below and will come ready to bolt onto your vehicle.

INTERCOOLER CORE SPECS:

Black core finish option

27" x 11" x 4" Cross Flow Core

Durable bar and plate construction that has a perfect balance of pressure drop and heat rejection

Cast aluminum end tanks - Designed for equal flow distribution and minimum pressure drop

Steel bolt-on mounting brackets - Robust mounting solution to minimize movement and to maximize adjustability

No permanent vehicle modification -, Only two tiny ribs need to be removed from the OEM undertray and a few simple cuts to the splash guard

Compatible with the factory or GrimmSpeed Intake with the removal of the factory snorkel

Pressure tested, cleaned, sealed, and guaranteed to work prior to delivery

No tune required - No change in maximum boost or spool time

Welded and inspected by hand in Minneapolis, MN for consistency and optimal quality control

Includes pre-applied GrimmSpeed sticker

INTERCOOLER PIPING SPECS:

Red powder-coated finish option

Thick .090 wall 2.5" diameter 6061 aluminum piping construction

Bead rolled and CNC mandrel-bent on a large radius for max flow

Lightweight and heat dispersant

Precision pipe routing - Retains factory components and avoids unnecessary trimming

Retains the factory fog light mounting

5-ply silicone couplers - Custom-molded and reinforced to withstand demanding environments

Breeze Hi-Torque Liner Clamps - Stainless steel for lasting durability and grip with an integrated liner to prevent the damage to the silicone

Durable powder-coated finish keeps pipes protected against corrosion while keeping a great look

OEM bypass valve location - Eases installation and allows for use of most aftermarket BPVs

BUMPER BAR SPECS: (Optional Add on)

Thick .125 wall 1.375" diameter DOM mild steel that has been designed and built tough to outlast your vehicle

Robust .375" mounting plates - Thick for strength yet skeletoned for weight savings

Reduces chassis deflection - Maintains chassis rigidity vs not running a bumper beam

Integrated tow hook - This is perfect for the GrimmSpeed License Plate Relocation Kit (not included)

Wrinkle black powder-coated finish for extra corrosion resistance

< Show Less
