*Application Note: 2018 is a split year, WRX with Vin# BEFORE J*806877 use this kit
The FX200 System uses the Power Plus I Pressure Plate and a Steel Backed Kevlar disc. This clutch is designed for the street enthusiast or weekend racer. The FX200 offers similar torque rating and holding capacity as the FX100, however, its life expectancy is increased with the Kevlar disc. Our Kevlar friction material is non-abrasive an. . . Show More >
*Application Note: 2018 is a split year, WRX with Vin# BEFORE J*806877 use this kit
The FX200 System uses the Power Plus I Pressure Plate and a Steel Backed Kevlar disc. This clutch is designed for the street enthusiast or weekend racer. The FX200 offers similar torque rating and holding capacity as the FX100, however, its life expectancy is increased with the Kevlar disc. Our Kevlar friction material is non-abrasive and doesn't score the mating surfaces. It features only slightly increased pedal pressure, significantly longer life than stock, and normal clutch feel during engagement and disengagement for the smoothest operation of any stage we offer. Minimum 500 Required break in miles.
Rated at 335 ft/lbs of torque.
All stages come as a complete kit including disc, pressure plate, throwout bearing, pilot bearing (when applicable), and alignment tool.
*Organic/ Kevlar/ Formula Button Clutch kits are expected and tend to have a higher life expectancy than OEM, however not guaranteed. Improper Installation, Driving style, performance upgrades, Break in procedure and light weight flywheels will effect and have a role in determining the life expectancy of the clutch kit.

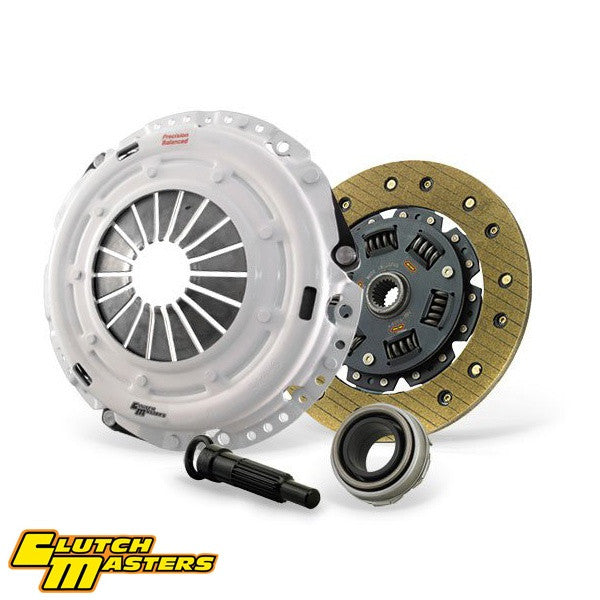

KITS INCLUDE THE FOLLOWING:
- High-Leverage Pressure Plate
- Performance Disc
- Release Bearing with Fork
- Alignment Tool
HIGH-LEVERAGE PRESSURE PLATE
The Clutch Masters High-Leverage pressure plate provides an increase in clamping force while still maintaining a soft pedal feel. The High-Leverage design reduces the amount of load against the crankshaft, minimizing thrust bearing wear, and crank walk. Clutch Masters begins with a OEM genuine pressure plate and incorporates our signature High-Leverage technology in order to achieve maximum clamping force without having to compromise pedal feel. Clutch Masters High-Leverage technology has been proven to be the best method of achieving a high clamping force in the clutch industry.
PERFORMANCE DISC
The Clutch Masters performance disc utilizes a high dampening 4 spring carrier to reduce the amount of shock and impact during engagement. A variety of materials are available to ensure you have the best setup for your application and to best suit your needs. Marcel or “cushion” is also incorporated on Clutch Masters performance disc to reduce chatter and offer a smoother engagement.
LIGHT WEIGHT STEEL OR ALUMINUM FLYWHEEL
The Clutch Masters light weight Chromoly-steel flywheel weighs 12lbs, light weight aluminum flywheel weighs 10 lbs. Both flywheels are significantly lighter compared to the OEM cast iron flywheel which weighs 23 lbs. Clutch Masters chromoly-steel flywheel are engineered to be driver friendly with minimal gear rattle which is increased when too light of a flywheel is utilized. The light weight flywheel offers a much quicker throttle response without compromising any bottom end torque which can be reduced when using too light of a flywheel. Clutch Masters light weight flywheels also help to eliminate any turbo-lag which is produced with a heavy flywheel. We recommend the chromoly-steel flywheel for street applications and aluminum flywheel for only race applications. Clutch Masters Flywheels are SFI Certified meeting performance and safety standards for the automotive and motorsport industry.
< Show Less
