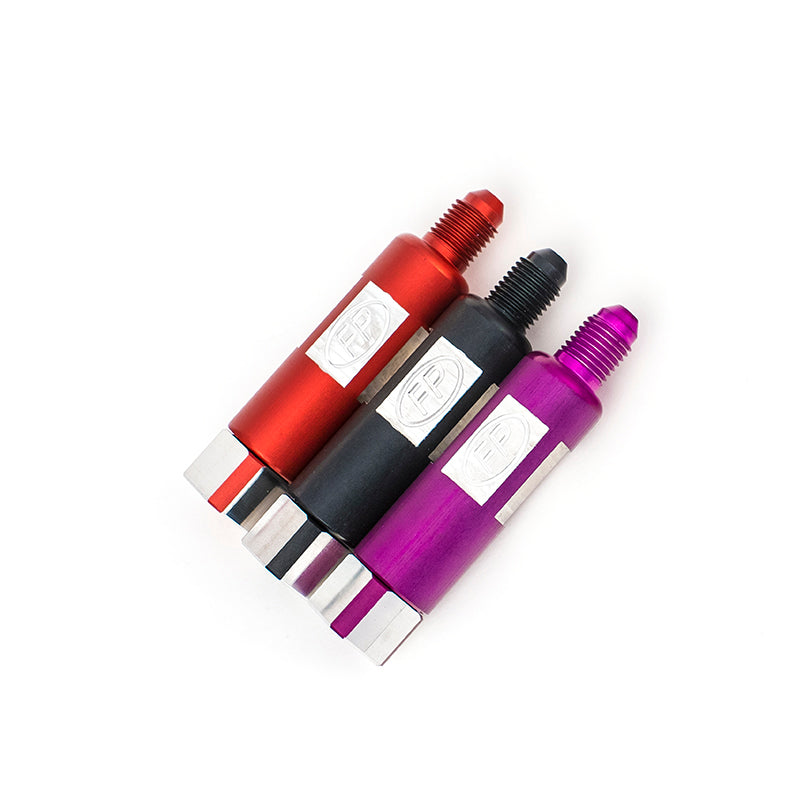

These filters are designed to fit inline with your turbo oil supply line. The filters are color coded for their orifice diameter. The Red filter is .125" for full flow with FP journal bearing turbos, the Purple filter is .020" for use with our Xona Rotor turbochargers and the black filter has a .030" restrictor and is used in Garrett based ball bearing applications.
The filter is made with female 4AN at the inlet side and male 4AN at the outlet side. This allows the filter . . . Show More >
These filters are designed to fit inline with your turbo oil supply line. The filters are color coded for their orifice diameter. The Red filter is .125" for full flow with FP journal bearing turbos, the Purple filter is .020" for use with our Xona Rotor turbochargers and the black filter has a .030" restrictor and is used in Garrett based ball bearing applications.
The filter is made with female 4AN at the inlet side and male 4AN at the outlet side. This allows the filter to install into virtually any 4AN line without additional fittings.
The FP -4 AN Filter features a 10 micron replaceable filter element that captures oil contaminants in its basket. The filter basket is easily removable for quick inspection and cleaning. The filter can be run in either direction, but the preffered flow direction is in the female side and out the male side. This allows all the contaminants to be collected inside the filter basket rather than collecting the contaminants all over the outside of the filter basket.
Usage information:
Remember that the filter can become clogged. While you may have prevented a turbo failure by filtering out contaminants, you can cause a failure by limiting oil supply through a plugged oil line filter. Check the filter regularly, you should inspect the filter whenever you perform an engine oil change. Turbo failures resulting from plugged filters are the responsibility of the user.
The user is also responsible for verifying that sufficient oil pressure is present at the turbo oil inlet. Turbo failures resulting from over restriction of the oil feed line is the responsibility of the user.
