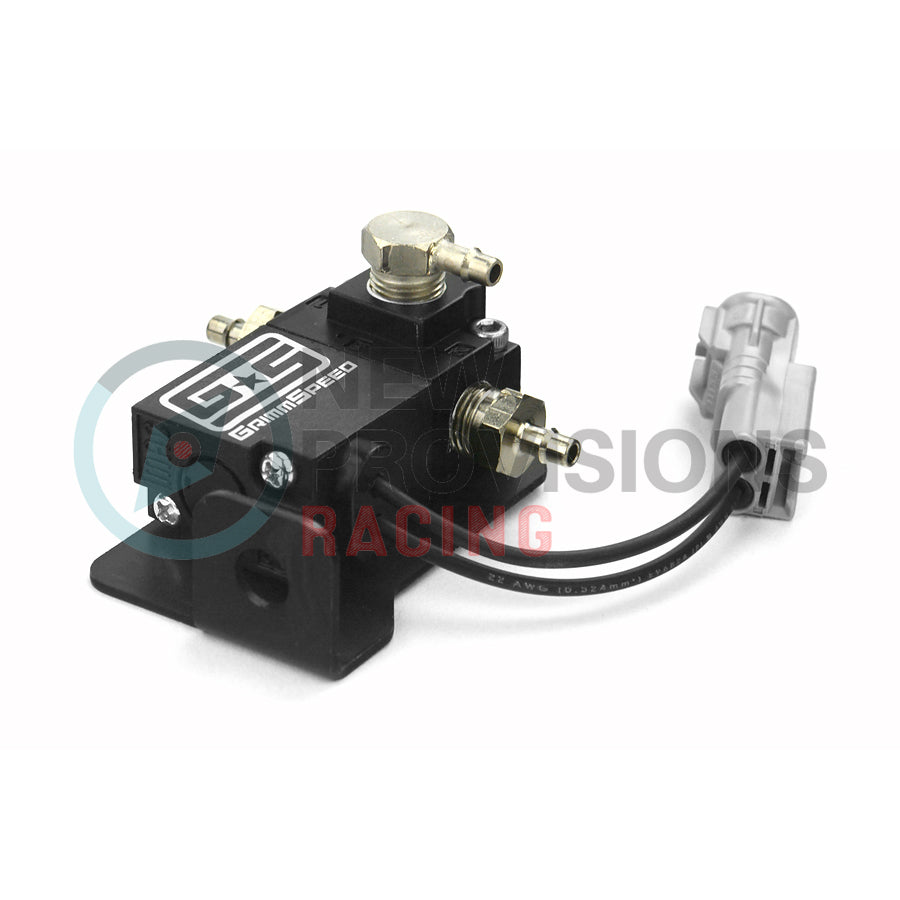

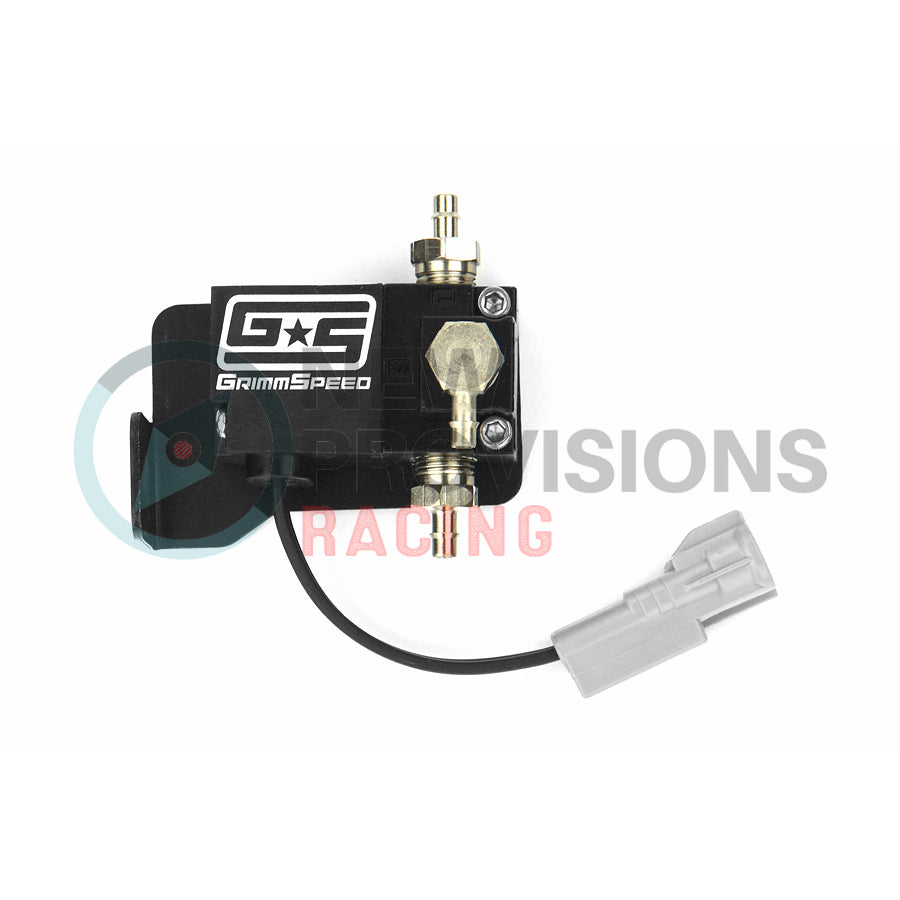

This 3-Port boost solenoid is a great means of tuning your boost curve through the ECU. For those of you who upgraded your downpipe, this is a great means to control boost through tuning so you're not running max boo. . . Show More >
This 3-Port boost solenoid is a great means of tuning your boost curve through the ECU. For those of you who upgraded your downpipe, this is a great means to control boost through tuning so you're not running max boost levels from lower to upper RPM ranges. With the 3-Port boost controller, you can safely tune your boost levels at the max-safe levels throughout your power band.
This 3-Port boost controller can get into boost sooner than most comparable units. It is also plug and play for OEM harness which means no modifying the wiring. It comes with a provided bracket to make for a clean installation, and works well with your Subaru factory ECU.
Full Features: * Direct plug and play into oem wiring. * MAC completely custom made valve * Users can use AN fittings with the solenoid. * Mounting bracket so it's a direct bolt on into factory location. * Low-profile brass hose fittings(small in size so its compact). * Specifically designed by GrimmSpeed to work safely with the factory Subaru ECU (requires tuning) and to reliably handle the vibrations and temperatures of your engine bay! * The only direct "bolt in" design for all Subaru models. Direct bolt in mounting bracket and hardware included! * Includes plug and play harness, no wire splicing required and easy to return to stock. * Allows you to raise the factory boost levels with adding more response and more control. * Allows you to get full boost sooner. * Faster response and greater flow than any other valve out there. (by more than 10%!) * Nickel plated brass fittings. (unlike the competitors failure prone plastic fittings)
GrimmSpeed 3 Port Boost Controller for Sale
The Grimmspeed 3 port EBCS boost controller may be a mouthful, but if you're into performance and have modded your car to the max, it just might be the thing that puts you over the top.
What is a Grimmspeed boost controller? The Grimmspeed EBCS is a solenoid that does exactly what it says it does. It controls the pressure of the turbo boost in turbocharged vehicles. The boost control system is made up of a boost controller and a wastegate.
The wastegate contains a spring that is set at a specific pressure. The boost is regulated by over-pressurizing that spring and letting the actuator open up to release heated gasses around the turbine.
A Grimmspeed 3 port EBCS does this by disrupting the boost signal between the source of the boost and the wastegate. It is at that point that it will redirect the pressure returning to the intake. Most OEM boost controllers are only two-port. They function by bleeding pressure off the pressure signal in between the source of the boost and the wastegate. This method is simpler, but it is slower to react than the interruption method and does its job with less precision.
You can get your Grimmspeed boost controller here, and shop with the confidence of knowing that you will be getting the finest EBCS money can buy.
Why is the Grimmspeed 3 Port EBCS a Worthwhile Upgrade for your WRX?
A Grimmspeed boost controller is a worthwhile upgrade because the addition of superior boost control will deliver a more accurately dialed-in tune.
The turbo has a great deal to do with what kind of boost control you need on a stock vehicle. Most original turbos are not overly large and don't deliver much in the way of boost pressure. Therefore they will never be very difficult to regulate at low boost levels. Fine-tuning the results, Grimspeed has remedied its product with its advanced, new Grimmspeed boost controller. The Grimmspeed EBCS is smoother, more responsive, and more reliable than just about any other boost controller in the performance aftermarket niche.
Experience Improved Boost Control & Consistency With the GrimmSpeed EBCS 3 Port
As any performance aficionado knows, more control and smoother response mean more power. Because there will be less loss as the pressure changes and as you adapt to changing conditions.
While you're at it, consider the GrimmSpeed oil air separator. This will deliver better performance, save oil, and help reduce the risk of unwanted detonations in the combustion chamber.
