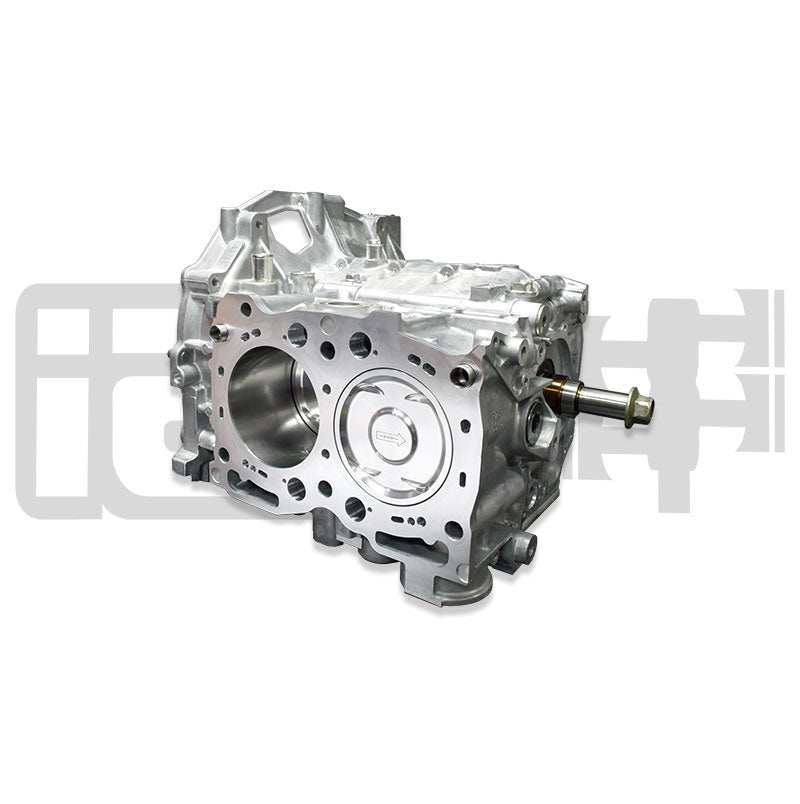

IAG 750 EJ25 Subaru Closed Deck Short Block - WRX/STI/LGT/FXT
IAG 750 EJ25 Subaru Closed Deck Short Block - WRX/STI/LGT/FXT
SKU: IAG-ENG-S750
$4,499.99$4,999.99
The IAG 750 Short Block is designed to solve the majority of common problems which plague modified EJ25 engines, especially at higher horsepower levels. The IAG 750 short block builds off our IAG 550 block's strengths by adding our proprietary closed deck system. This system strengthens and supports the cylinder walls to prevent cracks which can occur with increased cylinder pressures. (This is the most common issue when increasing horsepower.) The IAG 750 also . . . Show More >
The IAG 750 Short Block is designed to solve the majority of common problems which plague modified EJ25 engines, especially at higher horsepower levels. The IAG 750 short block builds off our IAG 550 block's strengths by adding our proprietary closed deck system. This system strengthens and supports the cylinder walls to prevent cracks which can occur with increased cylinder pressures. (This is the most common issue when increasing horsepower.) The IAG 750 also features 99.75mm JE Forged Pistons and IAG Spec H beam connecting rods, along with ACL or King Race bearings. These components also significantly strengthen the common failure points such as cracked ring lands and spun bearings.
IAG 750 Closed Deck Includes:
Case Halves - Converted to Closed Deck using brand new Subaru OEM case halves, bored and honed to 99.75mm.
Pistons - IAG-Spec JE FSR 99.75mm 2618 Forged Pistons, Ring Set, .210" 9310 Steel Wrist Pins, Clips, (Perfect Skirt Coating and Offset Wrist Pins)
Connecting Rods - IAG-Spec Tuff H-Beam / ARP2000 Rod Bolts.
Rod / Main Bearings - ACL or King Race bearings.
Crankshaft - Standard New Subaru Nitride Treated 2017+ STI Crankshaft.
Case / Main Bolts - Standard FHI Subaru case bolts.
Compression Ratio:
8.5:1 on D Cylinder Heads (EJ255)
8.2:1 on B, V and W EJ257 Heads with standard thickness gasket.
