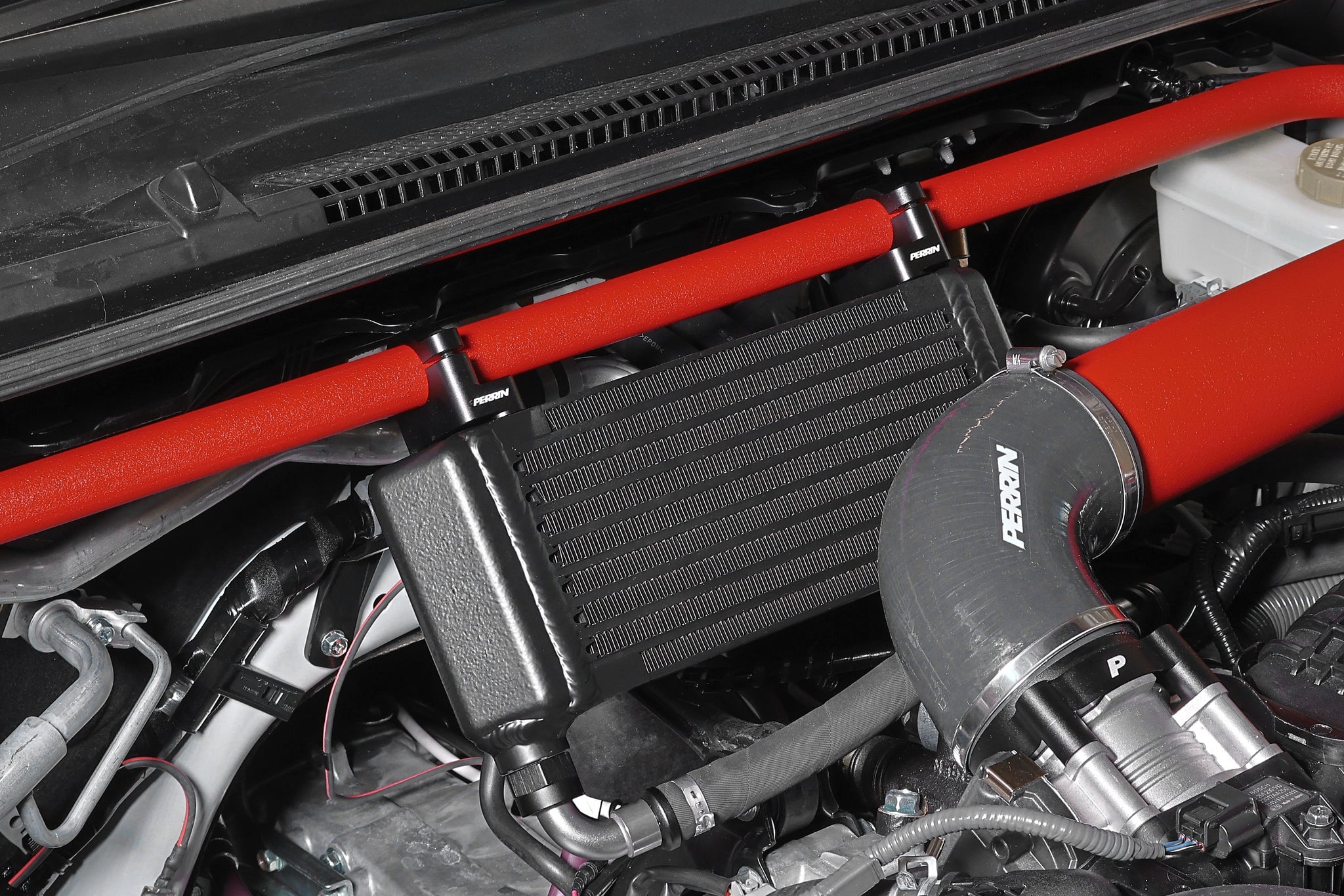

The PERRIN PSP-OIL-151 uses airflow through the factory hood scoop to help control engine oil temperature on WRXs converted to a front-mount intercooler. Its bar-and-plate core and thermostatic filter adapter support consistent cooling while allowing oil to warm up.
Fitment and requirements
Subaru WRX 2015–2026. Requires an aftermarket front-mount intercooler and a compatible 1-inch-diameter strut bar. Designed around the PERRIN Strut Brace. These required. . . Show More >
The PERRIN PSP-OIL-151 uses airflow through the factory hood scoop to help control engine oil temperature on WRXs converted to a front-mount intercooler. Its bar-and-plate core and thermostatic filter adapter support consistent cooling while allowing oil to warm up.
Fitment and requirements
Subaru WRX 2015–2026. Requires an aftermarket front-mount intercooler and a compatible 1-inch-diameter strut bar. Designed around the PERRIN Strut Brace. These required supporting parts are not included.
Specifications

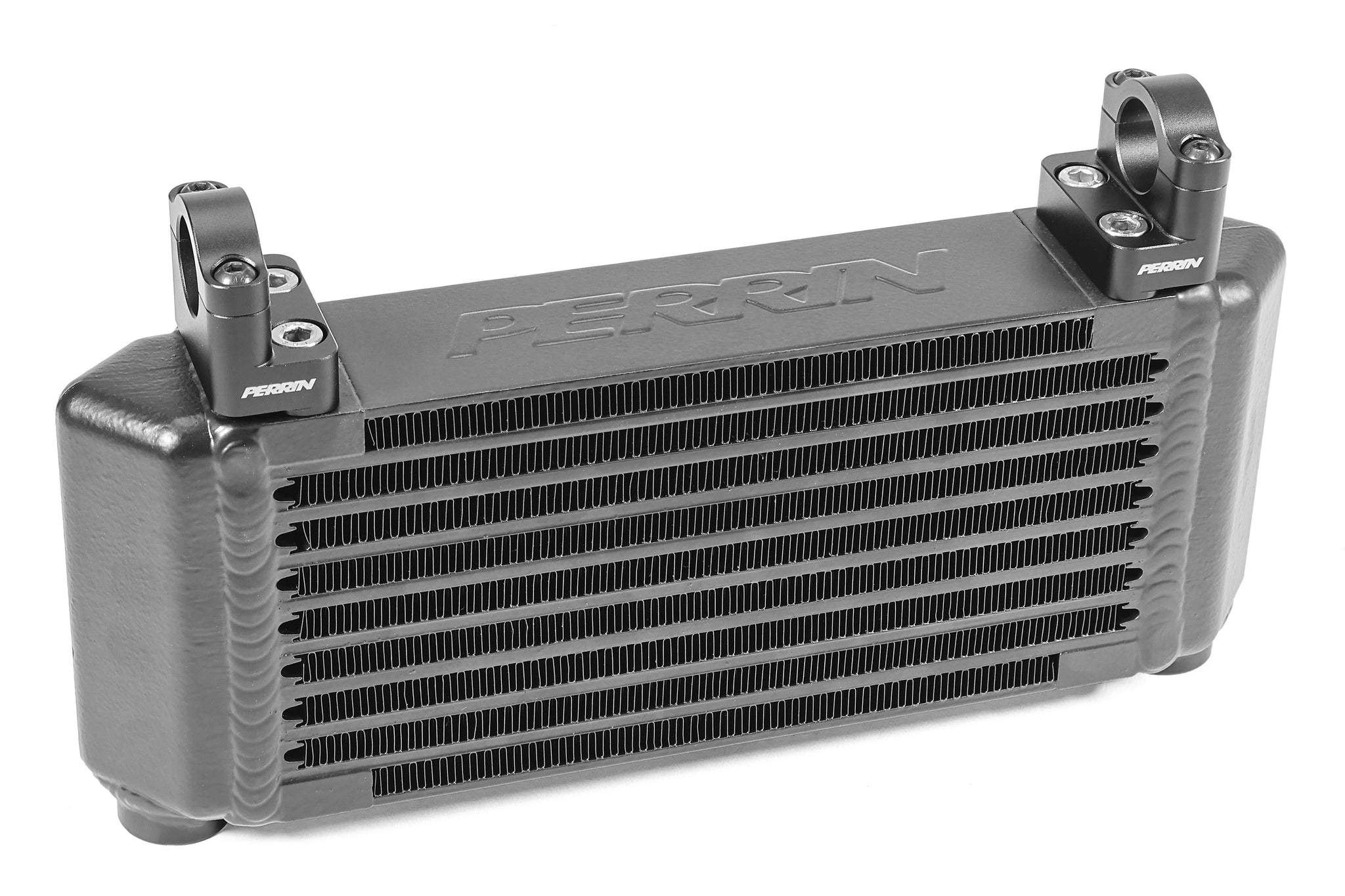

- Core: 9.5 × 4.75 × 2.2 inches
- Core pressure differential: 3.0/3.5 PSI
- Heat dissipation range: 22,000–29,000 BTU/hr
- Thermostat activation: 85°C (185°F)
- Preassembled -10 Aeroquip hoses with anti-drainback check valves; rated to 250 PSI and 300°F continuous
- 6061-T6 aluminum filter spacer
Kit contents

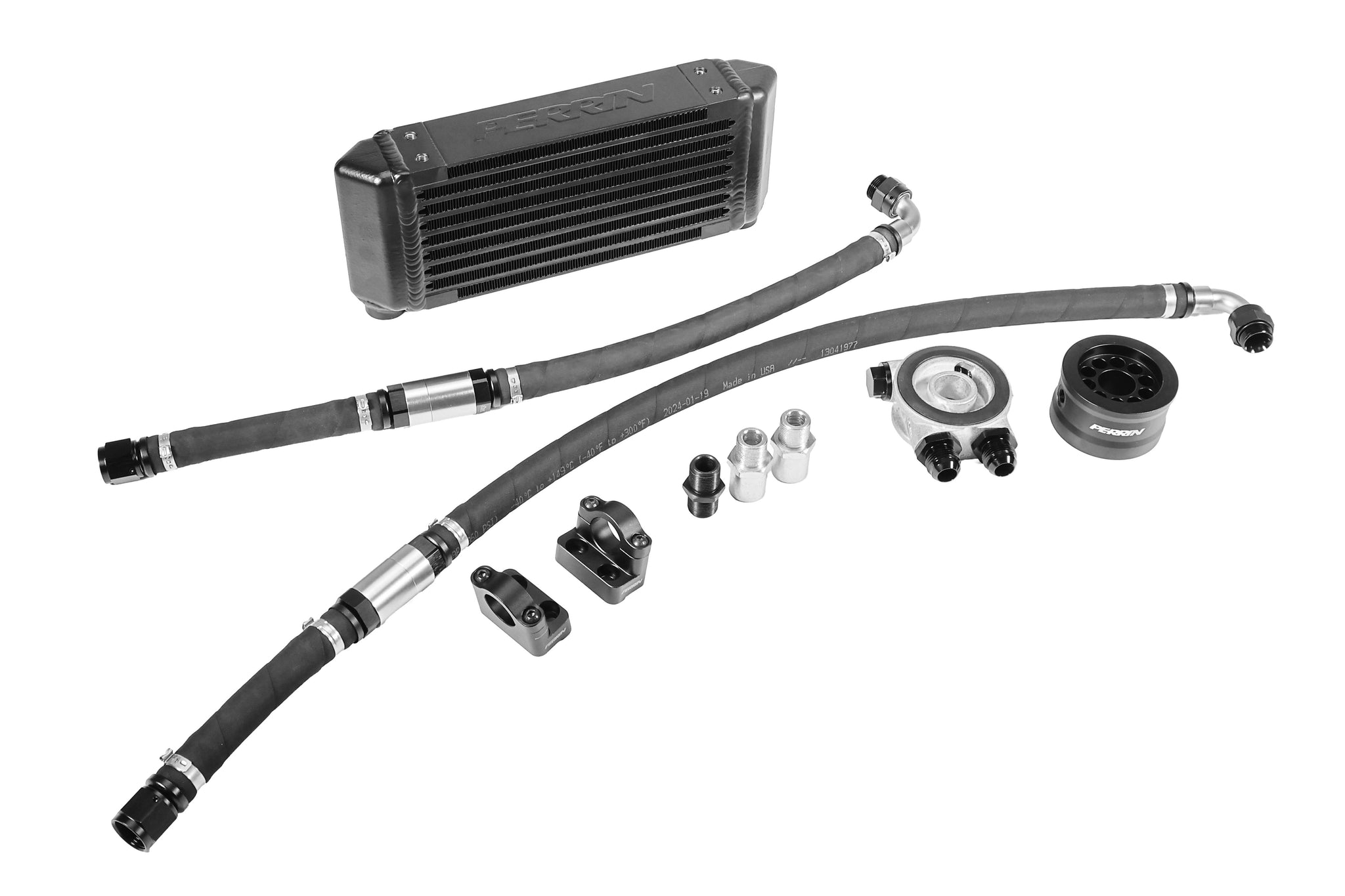

Oil cooler core, filter spacer, thermostatic adapter, oil feed pipes, oil lines, mounting brackets and installation hardware.
Installation
Estimated installation time: four hours. Additional oil is required; follow the installation guide and verify the final oil level. Oil filter is not supplied.
PERRIN installation instructions
