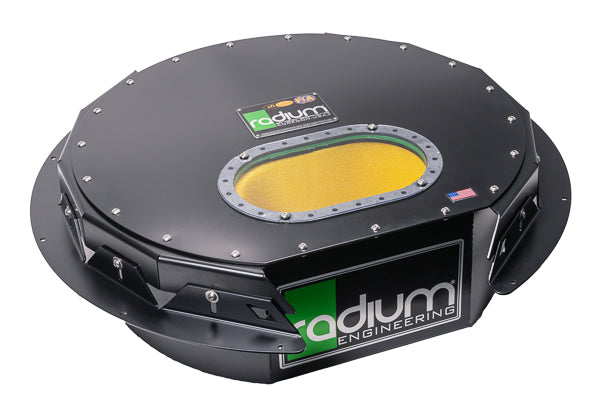

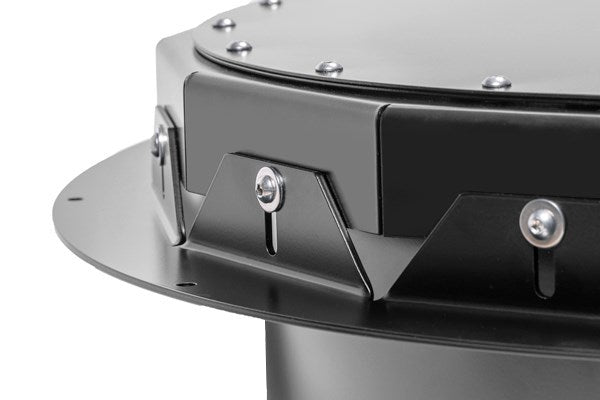

The Radium Engineering Spare Tire Fuel Cell Mounting Kit provides a straightforward mounting solution for installing a compatible circular fuel cell in a vehicle’s spare tire well. Slotted mounting holes provide 0.6 inch (15 mm) of height adjustment to accommodate differences between spare tire wells.
Compatibility
- Verified for the Radium RA-Series Spare Tire Fuel Cell
- May fit other spare tire fuel cells, but compatibility has not been verified by RadiumShow More >
The Radium Engineering Spare Tire Fuel Cell Mounting Kit provides a straightforward mounting solution for installing a compatible circular fuel cell in a vehicle’s spare tire well. Slotted mounting holes provide 0.6 inch (15 mm) of height adjustment to accommodate differences between spare tire wells.
Compatibility
- Verified for the Radium RA-Series Spare Tire Fuel Cell
- May fit other spare tire fuel cells, but compatibility has not been verified by Radium

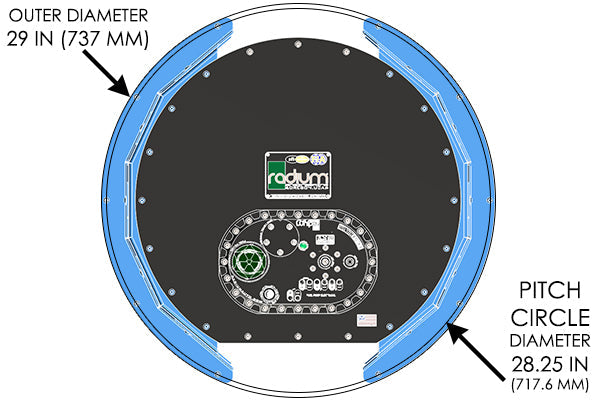

- Universal application. Measure the vehicle and review the included dimension image before ordering

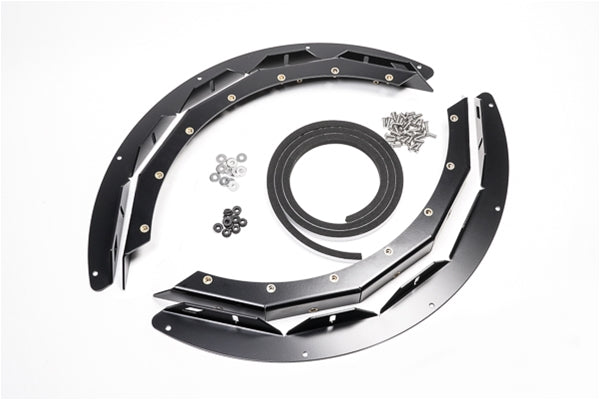

Kit Includes
- Powder-coated aluminum mounting brackets
- Stainless steel 1/4"-20 mounting bolts
- Zinc-plated 1/4"-20 flange nuts
- Mounting adhesive foam
Specifications
-
Part number: 20-0931
-
Dimensions: 30.1 × 12.4 × 6.7 inches
-
Weight: 7.1 lb
-
Height adjustment: 0.6 inch (15 mm)
Installation note: Installation requires drilling into the vehicle floor and access to the underside of the vehicle.
< Show Less
