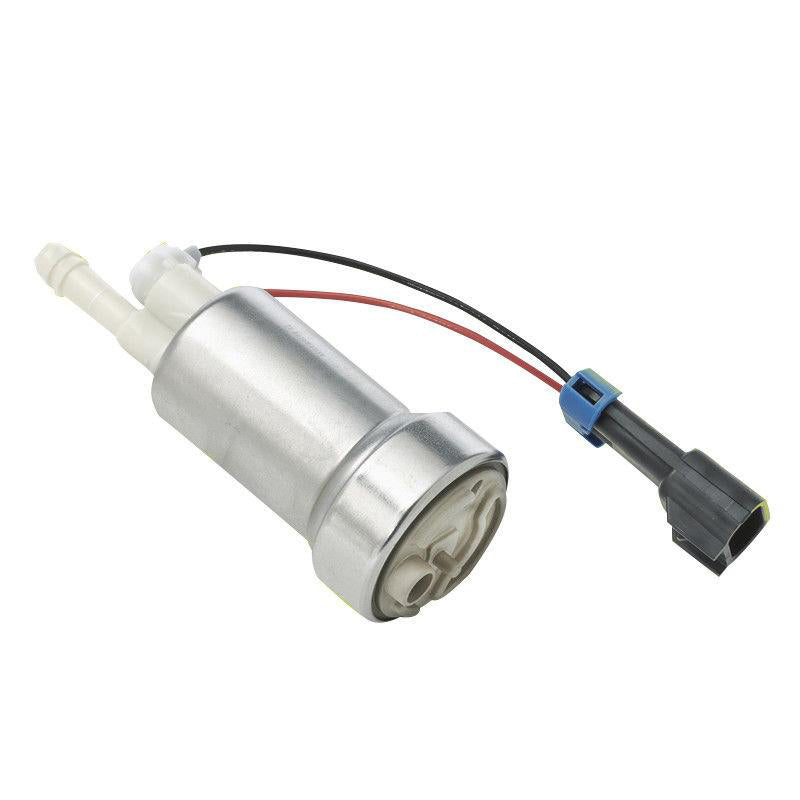

Walbro 525lph Hellcat Fuel Pump E85 Compatible - Universal

Enjoy the highest output on today’s market with our new DCSS 39/50 fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalelled performance.

Features:
- Highest flow in-tank brushed fuel pump offering from TI Automotive
-  Featuring award winning DCSS technology
-  E85 compatible
-  Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
-  High pressure relief setting — support supercharger and turbo applications
-  Capable of supporting 900+HP at 60PSI naturally aspirated applications

Specs:
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts
Install Kit not Included see item = 400-0085 / 400-1162
